FIXED IND 5.6UH 11.5A 6.4MOHM SM

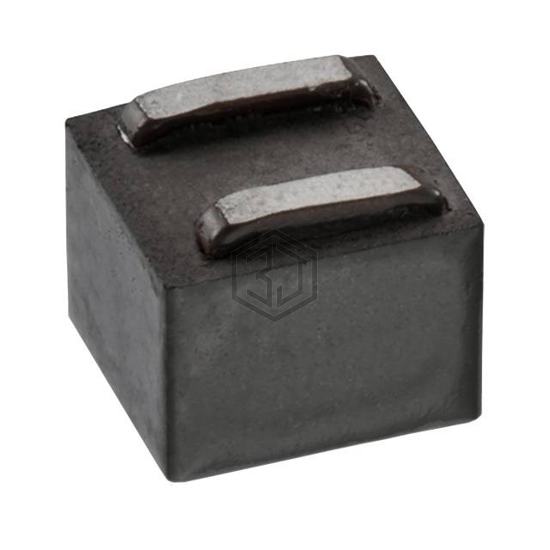

74439369056 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 5.6UH 11.5A 6.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 11.5 A.
In Stock: 1,442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11.5 A |
| Current - Saturation (Isat) | 23A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 14MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.457" L x 0.413" W (11.60mm x 10.50mm) |
| Height - Seated (Max) | 0.358" (9.10mm) |
Submit your RFQ for 74439369056 and get a quote within 24 hours.
