FIXED IND 4.7UH 9.5A 8.65MOHM SM

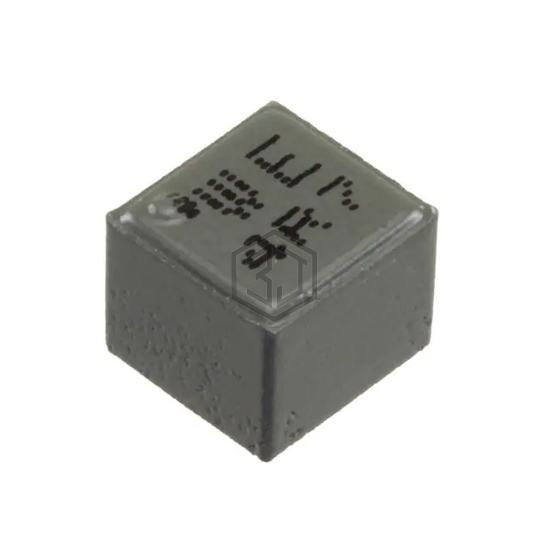

74439358047 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 4.7UH 9.5A 8.65MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.5 A.
In Stock: 4,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 20.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.65mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 25MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8080 |
| Size / Dimension | 0.346" L x 0.327" W (8.80mm x 8.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for 74439358047 and get a quote within 24 hours.
