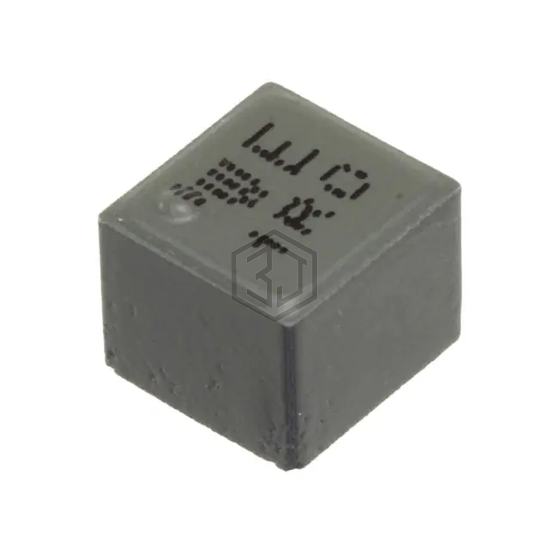

FIXED IND 1UH 17A 2.1 MOHM SMD
74439358010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 17A 2.1 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 17 A.
In Stock: 3,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 34A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 51MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8080 |
| Size / Dimension | 0.346" L x 0.327" W (8.80mm x 8.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
