FIXED IND 3.3UH 6.2A 23MOHM SMD

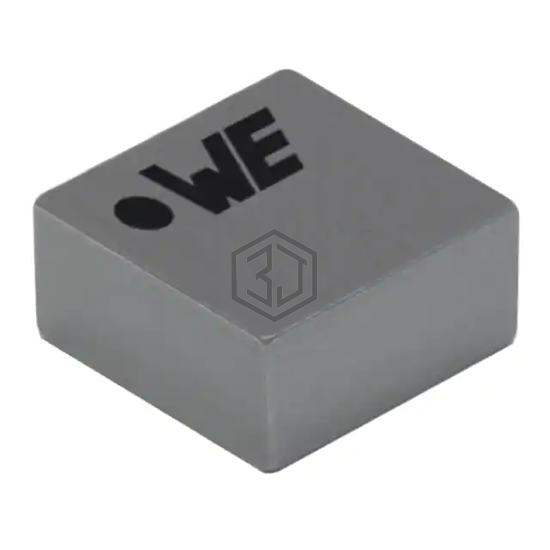

74438367033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3UH 6.2A 23MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.2 A.
In Stock: 4,558
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.2 A |
| Current - Saturation (Isat) | 7.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 22MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 5030 |
| Size / Dimension | 0.213" L x 0.213" W (5.40mm x 5.40mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for 74438367033 and get a quote within 24 hours.
