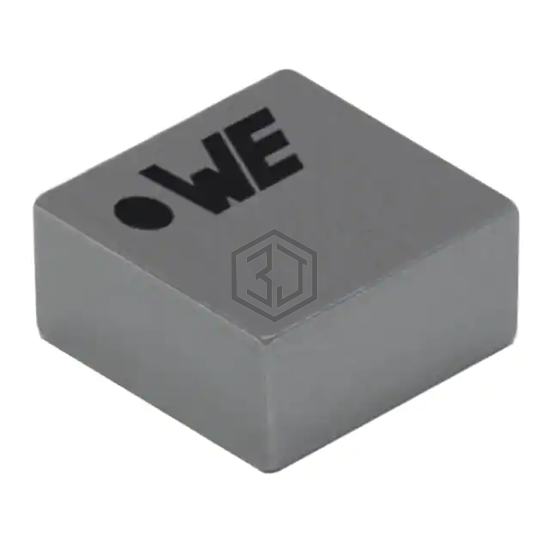

FIXED IND 1.5UH 6.7A 21.3MOHM SM
74438366015 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.5UH 6.7A 21.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.7 A.
In Stock: 1,010
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.7 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 21.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 5030 |
| Size / Dimension | 0.213" L x 0.213" W (5.40mm x 5.40mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for 74438366015 and get a quote within 24 hours.
