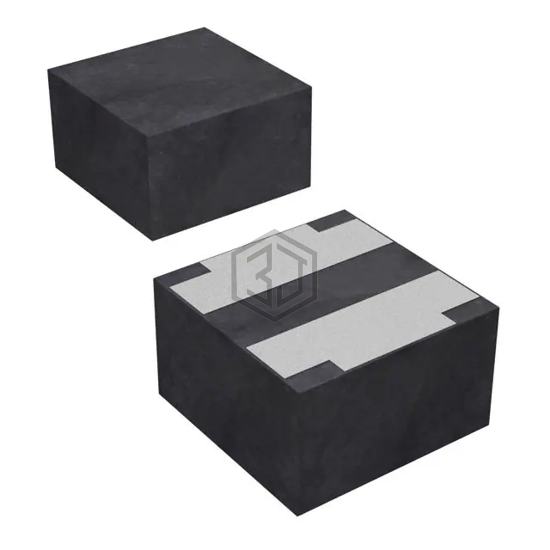

FIXED IND 22UH 1.7A 280MOHM SMD
74438356220 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 22UH 1.7A 280MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1616 (4040 Metric), current rating (amps) 1.7 A.
In Stock: 6,909
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Alloy |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | 1.85A |
| Shielding | Shielded |
| DC Resistance (DCR) | 280mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 4020 |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Submit your RFQ for 74438356220 and get a quote within 24 hours.
