FIXED IND 2.2UH 4.5A 32.2MOHM SM

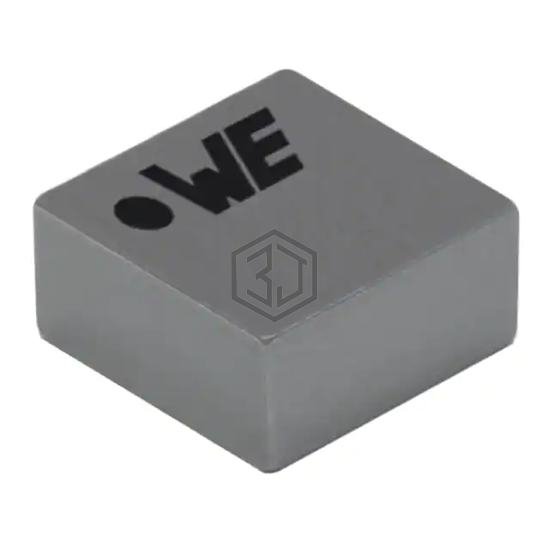

74438356022HT is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 4.5A 32.2MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case 1616 (4040 Metric), current rating (amps) 4.5 A.
In Stock: 1,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.5 A |
| Current - Saturation (Isat) | 5.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 32.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 4020 |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
