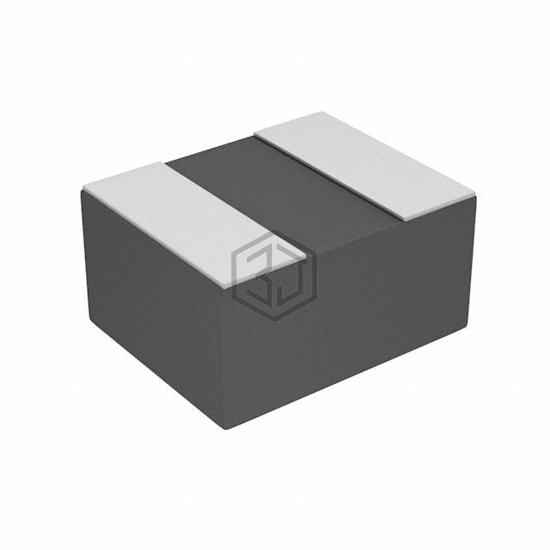

FIXED IND 1.2UH 1.5A 136MOHM SMD
74438343012 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.2UH 1.5A 136MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 1.5 A.
In Stock: 2,907
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal Composite |
| Inductance | 1.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 3.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 136mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 96MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 2010 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for 74438343012 and get a quote within 24 hours.
