FIXED IND 330NH 4.8A 22.8MOHM SM

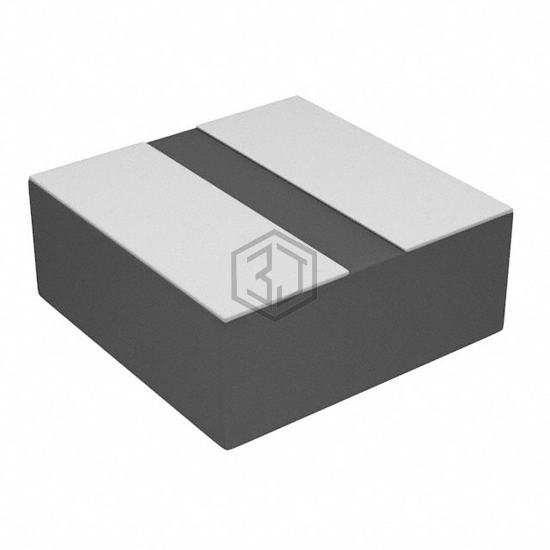

744383340033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 330NH 4.8A 22.8MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1212 (3030 Metric), current rating (amps) 4.8 A.
In Stock: 6,469
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal Composite |
| Inductance | 330 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.8 A |
| Current - Saturation (Isat) | 11.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 22.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 140MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 3012 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
