FIXED IND 1UH 1.75A 133 MOHM SMD

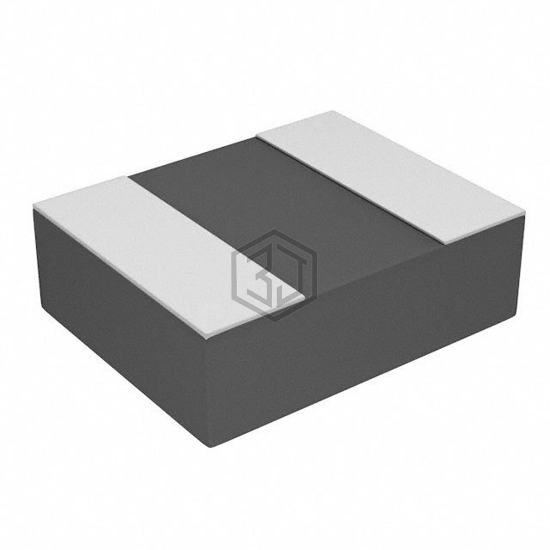

74438322010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 1.75A 133 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 1.75 A.
In Stock: 1,613
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal Composite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | 3.35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 133mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 2508 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
