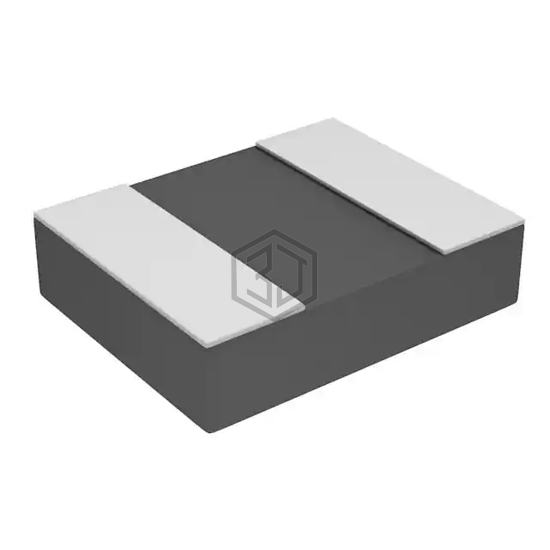

FIXED IND 470NH 2.25A 87MOHM SMD
744383220047 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 470NH 2.25A 87MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 2.25 A.
In Stock: 2,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal Composite |
| Inductance | 470 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.25 A |
| Current - Saturation (Isat) | 4.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 87mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 160MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 2506 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for 744383220047 and get a quote within 24 hours.
