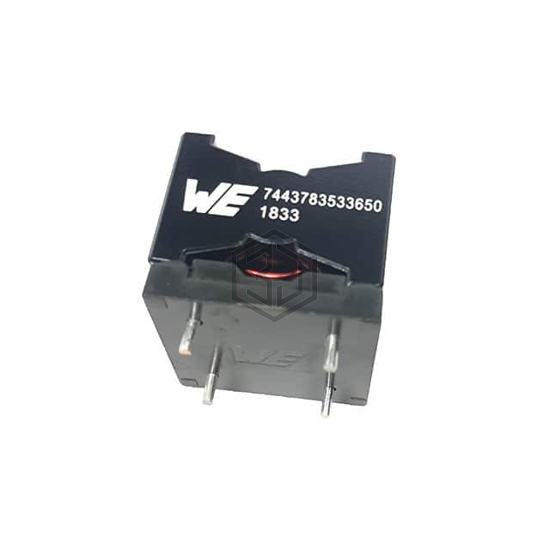

FIXED IND 65UH 17.2A 14.44 MOHM
7443783533650 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 65UH 17.2A 14.44 MOHM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 17.2 A.
In Stock: 63
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 65 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.2 A |
| Current - Saturation (Isat) | 26.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.44mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.28MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.417" L x 1.358" W (36.00mm x 34.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
Submit your RFQ for 7443783533650 and get a quote within 24 hours.
