FIXED IND 10UH 20.6A 5 MOHM TH

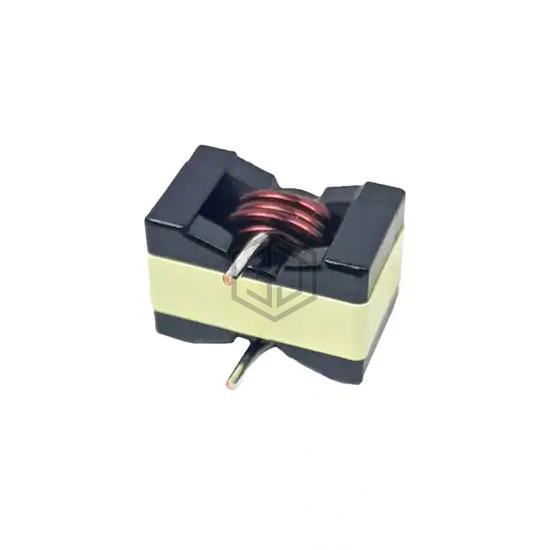

7443782012100 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 20.6A 5 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 20.6 A.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.6 A |
| Current - Saturation (Isat) | 20.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 17MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.866" L x 0.669" W (22.00mm x 17.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
Submit your RFQ for 7443782012100 and get a quote within 24 hours.
