FIXED IND 22UH 40.6A 3.2 MOHM TH

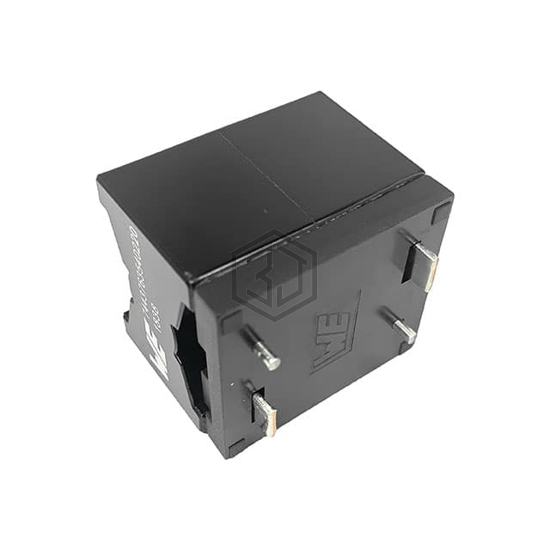

7443763540220 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 22UH 40.6A 3.2 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 40.6 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 40.6 A |
| Current - Saturation (Isat) | 42A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.614" L x 1.417" W (41.00mm x 36.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
Submit your RFQ for 7443763540220 and get a quote within 24 hours.
