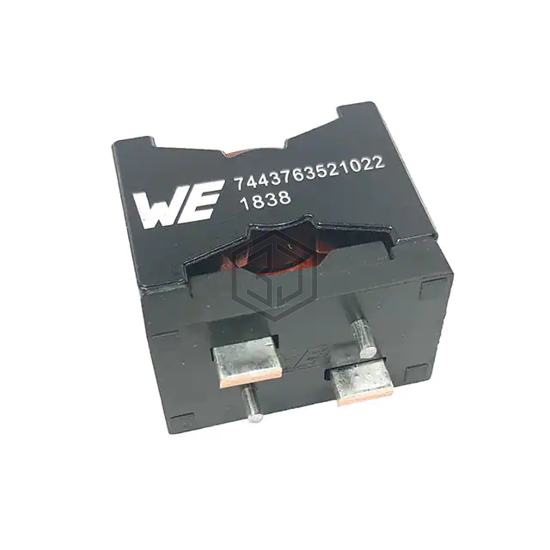

FIXED IND 2.2UH 75A 0.4 MOHM TH
7443763521022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 75A 0.4 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 75 A.
In Stock: 132
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 75 A |
| Current - Saturation (Isat) | 120A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.417" L x 0.846" W (36.00mm x 21.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
Submit your RFQ for 7443763521022 and get a quote within 24 hours.
