FIXED IND 2.2UH 30A 1.96 MOHM TH

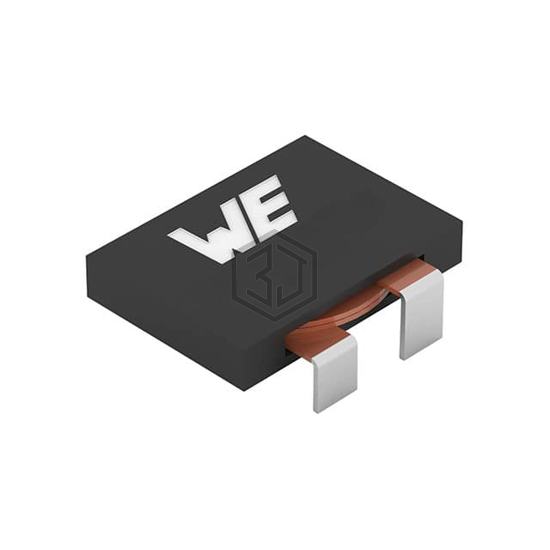

7443762504022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 30A 1.96 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 30 A.
In Stock: 157
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.96mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 23MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.992" L x 0.866" W (25.20mm x 22.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) |
Submit your RFQ for 7443762504022 and get a quote within 24 hours.
