FIXED IND 100UH 8.8A 35.9MOHM SM

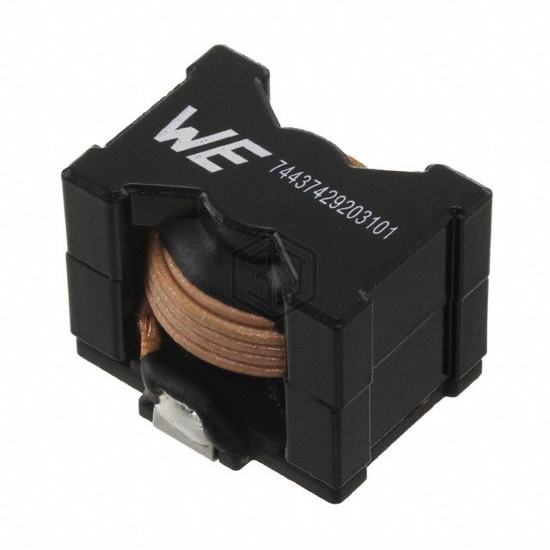

74437429203101 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100UH 8.8A 35.9MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 8.8 A.
In Stock: 1,496
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.8 A |
| Current - Saturation (Isat) | 9.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 35.9mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2920 |
| Size / Dimension | 1.102" L x 0.984" W (28.00mm x 25.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
