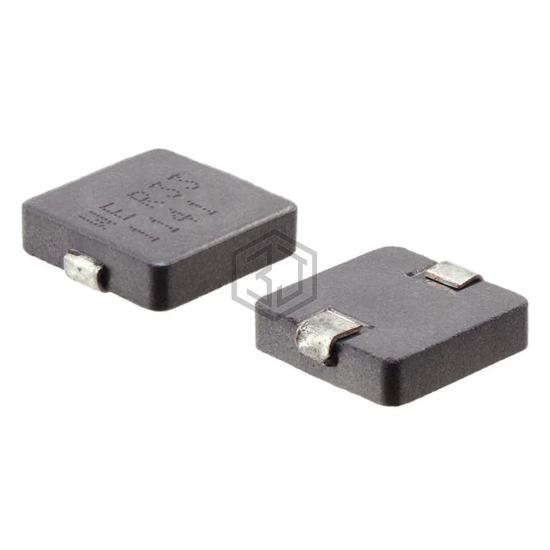

FIXED IND 220NH 25A 0.9 MOHM SMD
744373770022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 25A 0.9 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 40A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 130MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for 744373770022 and get a quote within 24 hours.
