FIXED IND 390NH 20.5A 1.3MOHM SM

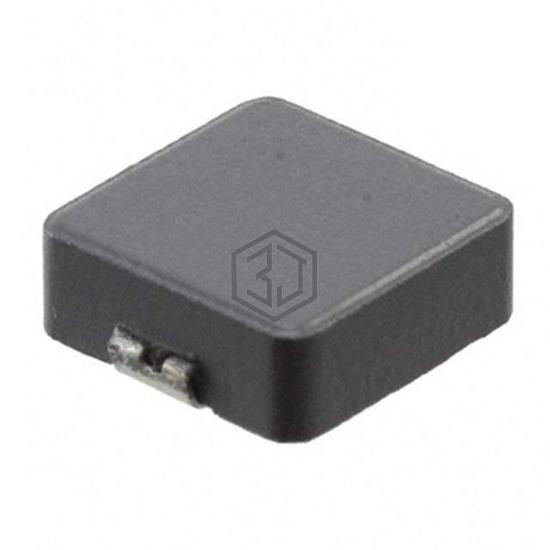

744373680039 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 390NH 20.5A 1.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 20.5 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 390 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.5 A |
| Current - Saturation (Isat) | 63A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 101MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) |
