FIXED IND 2.2UH 10A 9.41MOHM SMD

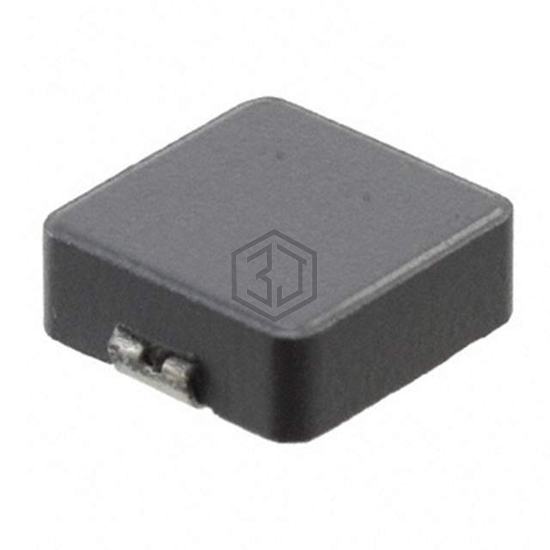

74437358022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 10A 9.41MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 10 A.
In Stock: 797
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 22A |
| Shielding | Shielded |
| DC Resistance (DCR) | 9.41mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 29MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8040 |
| Size / Dimension | 0.362" L x 0.335" W (9.20mm x 8.50mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for 74437358022 and get a quote within 24 hours.
