FIXED IND 1UH 12.5A 8.35MOHM SMD

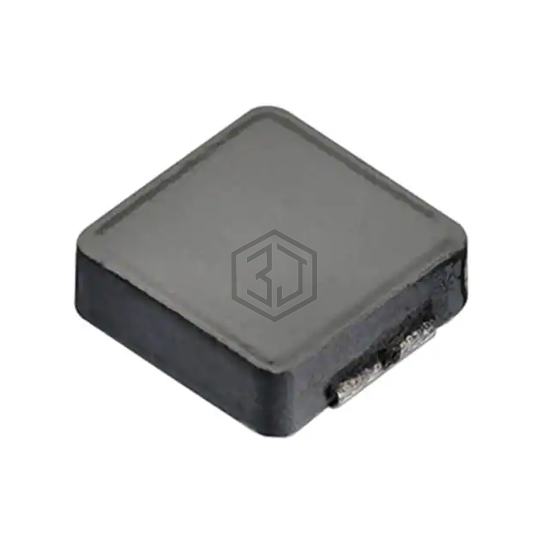

74437356010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 12.5A 8.35MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 12.5 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.5 A |
| Current - Saturation (Isat) | 25.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.35mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 44MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8030 |
| Size / Dimension | 0.362" L x 0.244" W (9.20mm x 6.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for 74437356010 and get a quote within 24 hours.
