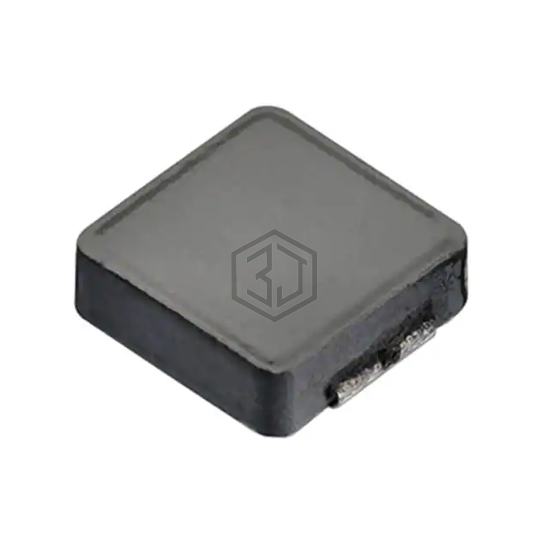

FIXED IND 820NH 13.5A 4.87 MOHM
744373560082 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 820NH 13.5A 4.87 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 13.5 A.
In Stock: 570
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 820 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.5 A |
| Current - Saturation (Isat) | 30.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.87mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 51MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8030 |
| Size / Dimension | 0.362" L x 0.335" W (9.20mm x 8.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for 744373560082 and get a quote within 24 hours.
