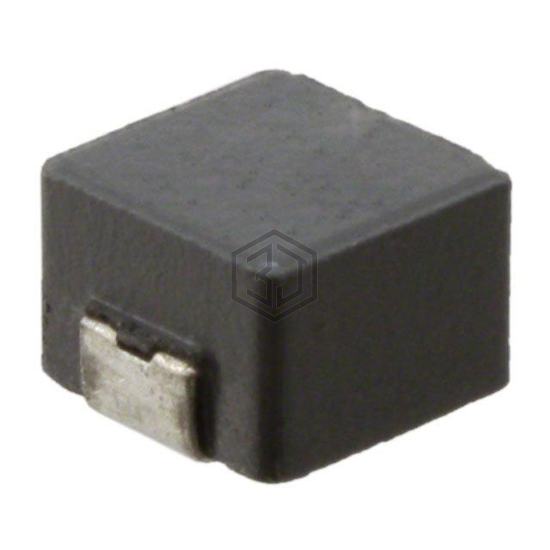

FIXED IND 560NH 13A 4.2 MOHM SMD
744373490056 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 560NH 13A 4.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 13 A.
In Stock: 790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | 28A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 85MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 744373490056 and get a quote within 24 hours.
