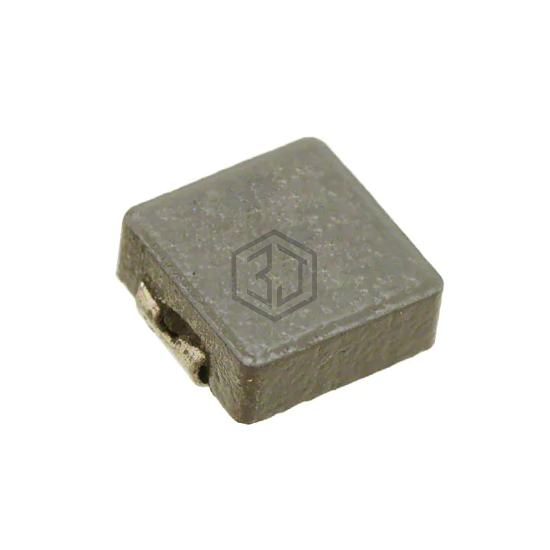

FIXED IND 1.8UH 6.8A 17 MOHM SMD
74437346018 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.8UH 6.8A 17 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.8 A.
In Stock: 681
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.8 A |
| Current - Saturation (Isat) | 16.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 17mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for 74437346018 and get a quote within 24 hours.
