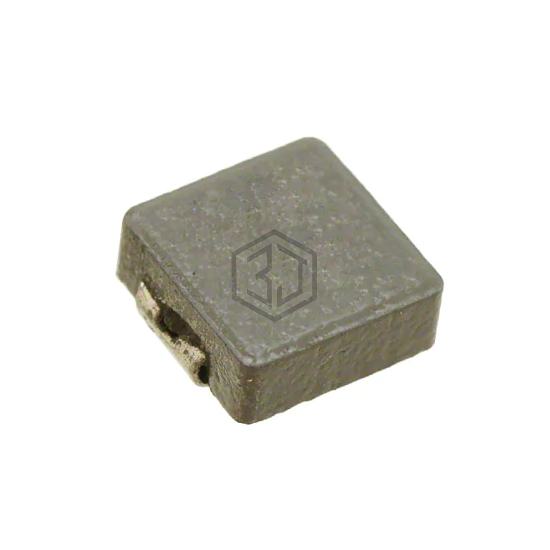

FIXED IND 680NH 11A 5.5 MOHM SMD
744373460068 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 680NH 11A 5.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 11 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 72MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
