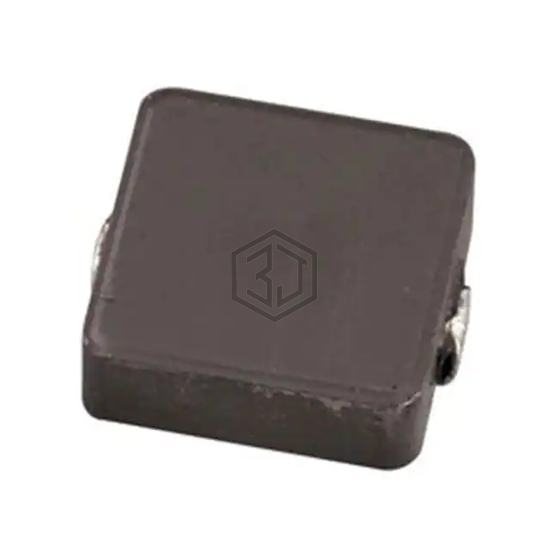

FIXED IND 5.6UH 3.3A 63 MOHM SMD
74437336056 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 5.6UH 3.3A 63 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, current rating (amps) 3.3 A.
In Stock: 1,820
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.3 A |
| Current - Saturation (Isat) | 5.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 63mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 22MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | 5030 |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
