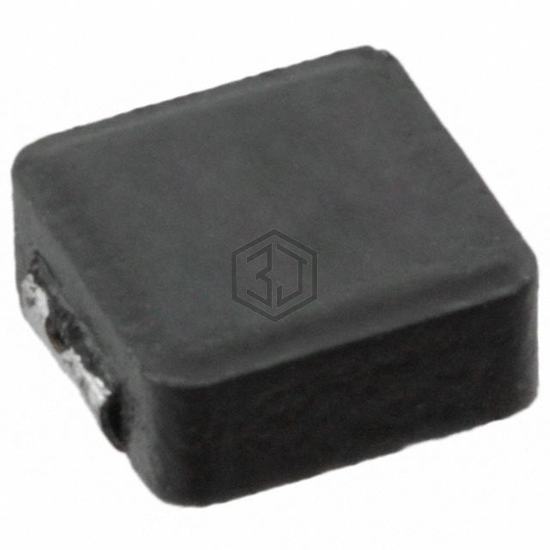

FIXED IND 15UH 1.2A 374 MOHM SMD
74437324150 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 15UH 1.2A 374 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 4,418
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 2.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 374mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 17MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4020 |
| Size / Dimension | 0.185" L x 0.170" W (4.70mm x 4.31mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for 74437324150 and get a quote within 24 hours.
