FIXED IND 220NH 9.5A 7.3MOHM SMD

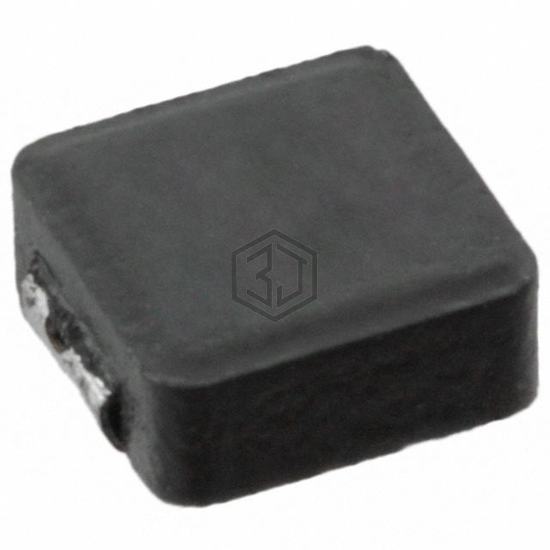

744373240022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 9.5A 7.3MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.5 A.
In Stock: 2,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 220 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 195MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for 744373240022 and get a quote within 24 hours.
