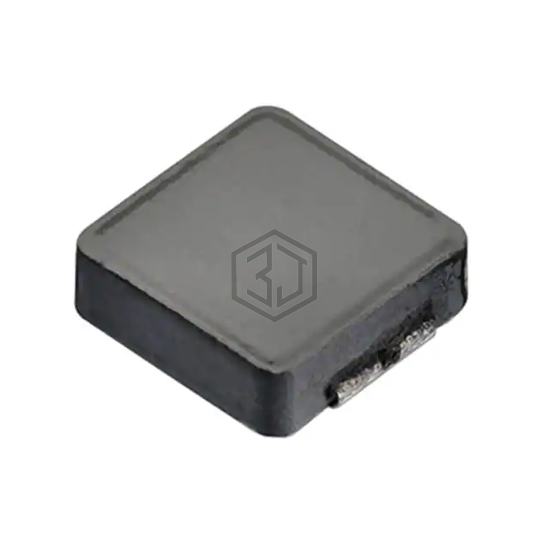

FIXED IND 220NH 7.7A 8 MOHM SMD
744373210022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 7.7A 8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, current rating (amps) 7.7 A.
In Stock: 3,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.7 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 230MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | 4012 |
| Size / Dimension | 0.160" L x 0.160" W (4.06mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for 744373210022 and get a quote within 24 hours.
