FIXED IND 33UH 30A 2.4 MOHM SMD

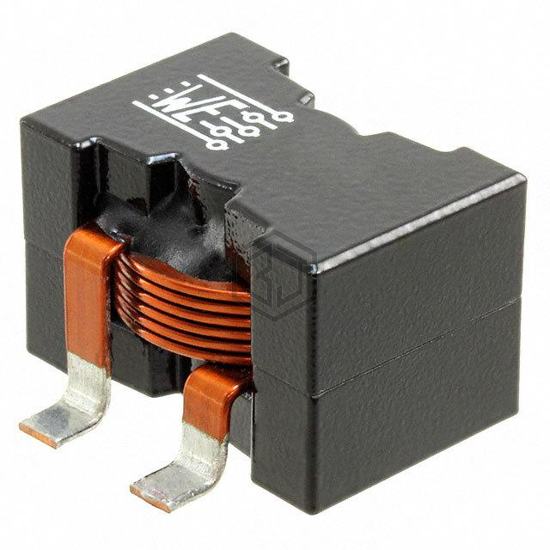

7443643300 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 33UH 30A 2.4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 30 A.
In Stock: 158
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 33 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | 11.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2818 |
| Size / Dimension | 1.122" L x 0.768" W (28.50mm x 19.50mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
Submit your RFQ for 7443643300 and get a quote within 24 hours.
