FIXED IND 4.7UH 36A 1.441MOHM SM

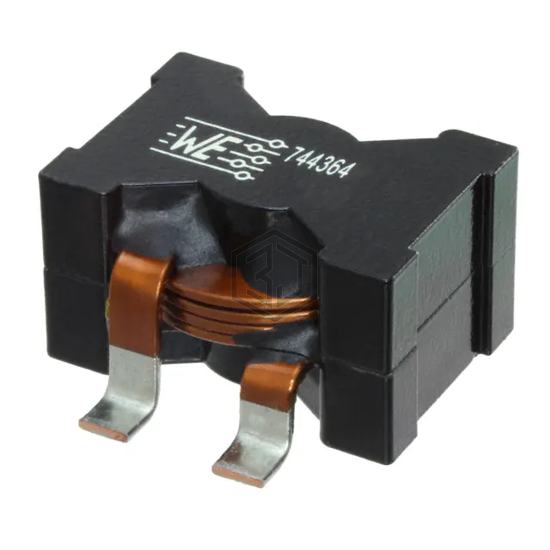

74436410470 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 4.7UH 36A 1.441MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 36 A.
In Stock: 510
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 4.7 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 36 A |
| Current - Saturation (Isat) | 44A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.441mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 21.56MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2815 |
| Size / Dimension | 1.102" L x 0.764" W (28.00mm x 19.40mm) |
| Height - Seated (Max) | 0.606" (15.40mm) |
Submit your RFQ for 74436410470 and get a quote within 24 hours.
