FIXED IND 6.8UH 47.5A 0.968 MOHM

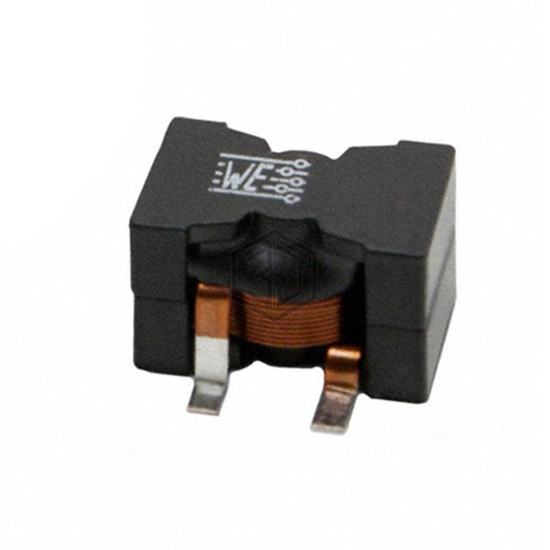

7443640680B is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8UH 47.5A 0.968 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 47.5 A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 47.5 A |
| Current - Saturation (Isat) | 36.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.968mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 18.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.102" L x 0.764" W (28.00mm x 19.40mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
Submit your RFQ for 7443640680B and get a quote within 24 hours.
