FIXED IND 15UH 14A 8.7 MOHM SMD

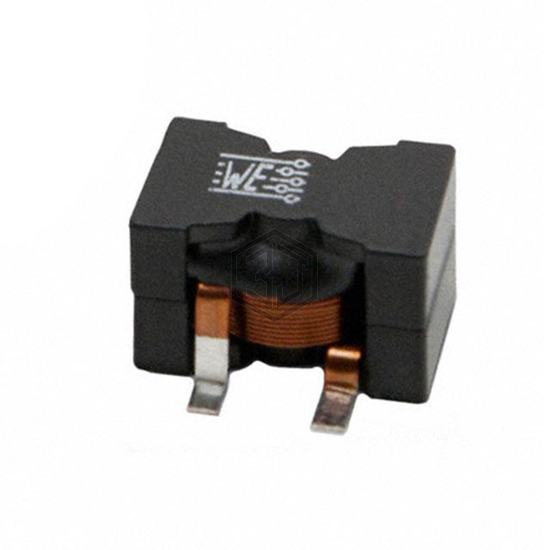

7443631500 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 15UH 14A 8.7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 14 A.
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 15 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 14 A |
| Current - Saturation (Isat) | 21A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 12.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.858" L x 0.846" W (21.80mm x 21.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for 7443631500 and get a quote within 24 hours.
