FIXED IND 10UH 16A 7.96 MOHM SMD

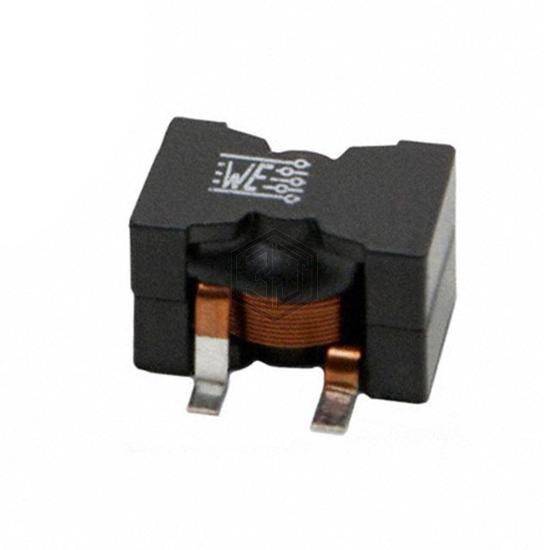

7443631000 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 16A 7.96 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 16 A.
In Stock: 1,797
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 10 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 23A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.96mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 13MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.846" L x 0.827" W (21.50mm x 21.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for 7443631000 and get a quote within 24 hours.
