FIXED IND 2.2UH 28A 1.5 MOHM SMD

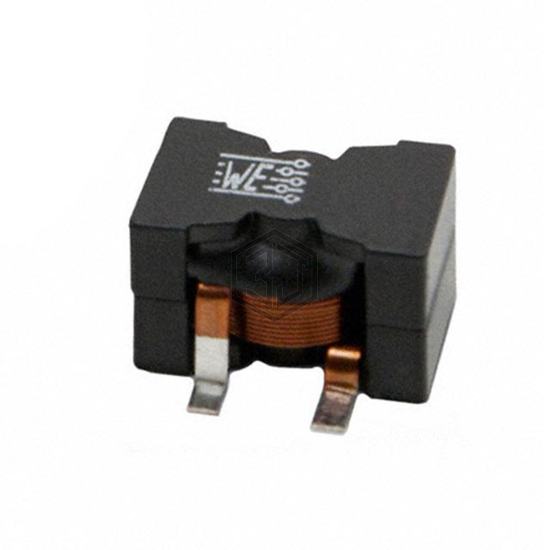

7443630220 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 28A 1.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 28 A.
In Stock: 582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 2.2 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 28 A |
| Current - Saturation (Isat) | 52A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 32MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.846" L x 0.827" W (21.50mm x 21.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
