FIXED IND 10UH 15A 6.9 MOHM SMD

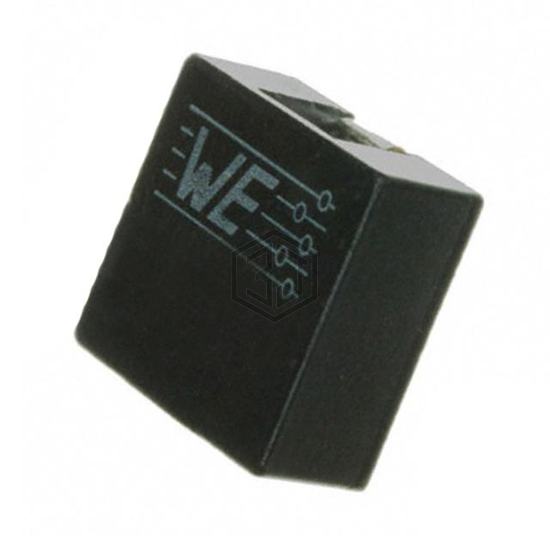

74435561100 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 15A 6.9 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 15 A.
In Stock: 6,396
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | 21.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.9mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 14MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1890 |
| Size / Dimension | 0.720" L x 0.717" W (18.30mm x 18.20mm) |
| Height - Seated (Max) | 0.362" (9.20mm) |
Submit your RFQ for 74435561100 and get a quote within 24 hours.
