FIXED IND 2.3UH 17.5A 3.7MOHM SM

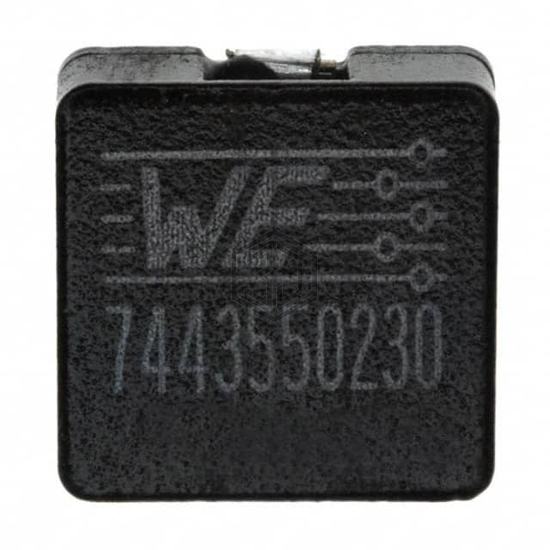

7443550230 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.3UH 17.5A 3.7MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 17.5 A.
In Stock: 365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.5 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1350 |
| Size / Dimension | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 7443550230 and get a quote within 24 hours.
