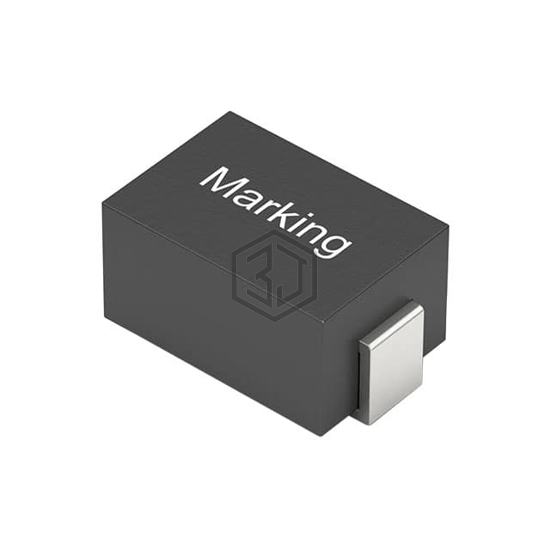

FIXED IND 100NH 29A 0.38MOHM SMD
74434035010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100NH 29A 0.38MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 29 A.
In Stock: 1,900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 29 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.38mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 69MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.122" W (5.00mm x 3.10mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for 74434035010 and get a quote within 24 hours.
