FIXED IND 55NH 27A 0.27 MOHM SMD

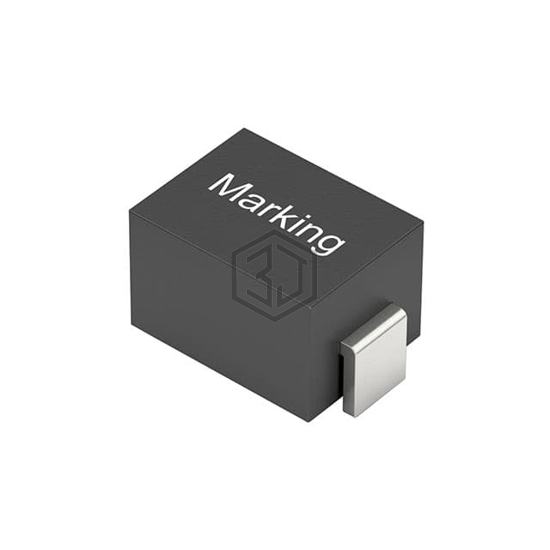

744340300055 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 55NH 27A 0.27 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 27 A.
In Stock: 1,687
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 55 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 27 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.27mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 123MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.122" W (4.80mm x 3.10mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for 744340300055 and get a quote within 24 hours.
