FIXED IND 1UH 17A 3.9 MOHM SMD

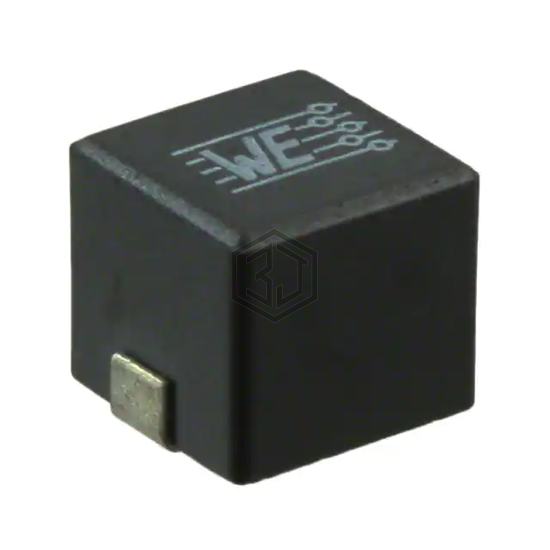

7443340100 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 17A 3.9 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 17 A.
In Stock: 8,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 147MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.331" L x 0.311" W (8.40mm x 7.90mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for 7443340100 and get a quote within 24 hours.
