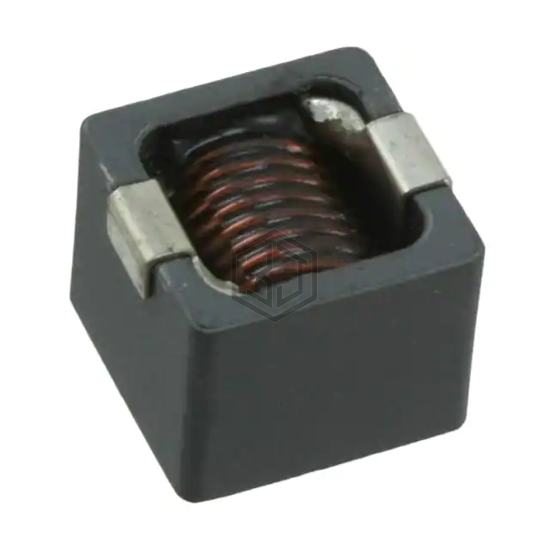

FIXED IND 680NH 20A 2.65MOHM SMD
7443330068 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 680NH 20A 2.65MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 20 A.
In Stock: 387
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | 38A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.65mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 140MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.429" L x 0.394" W (10.90mm x 10.00mm) |
| Height - Seated (Max) | 0.382" (9.70mm) |
