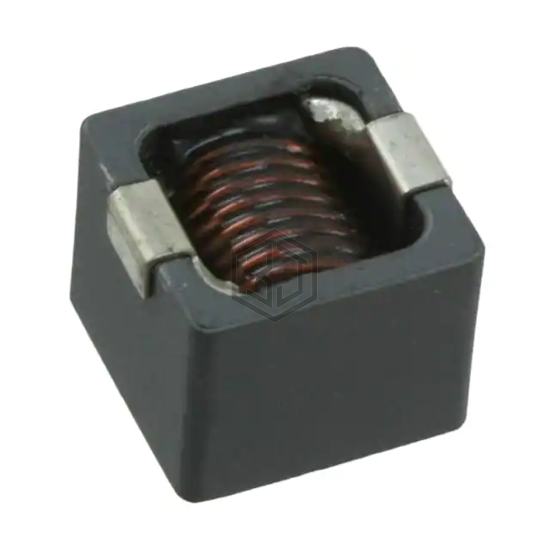

FIXED IND 330NH 27A 1.5 MOHM SMD
7443310033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 330NH 27A 1.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 27 A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 27 A |
| Current - Saturation (Isat) | 80A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 190MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.476" L x 0.449" W (12.10mm x 11.40mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for 7443310033 and get a quote within 24 hours.
