FIXED IND 160NH 25A 0.51MOHM SMD

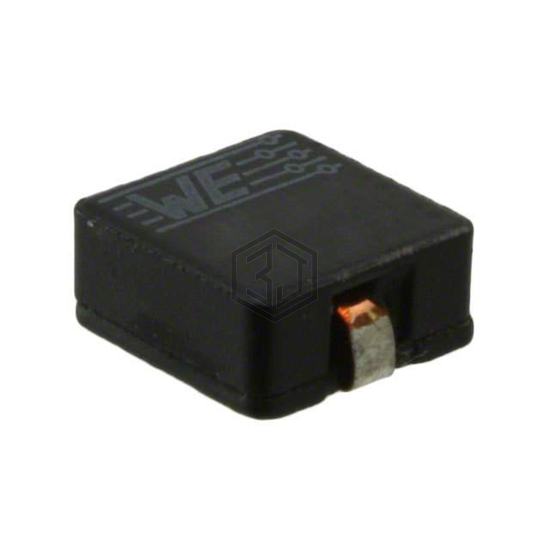

744325016 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 160NH 25A 0.51MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 660
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 160 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 58A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.51mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 400MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1050 |
| Size / Dimension | 0.413" L x 0.402" W (10.50mm x 10.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 744325016 and get a quote within 24 hours.
