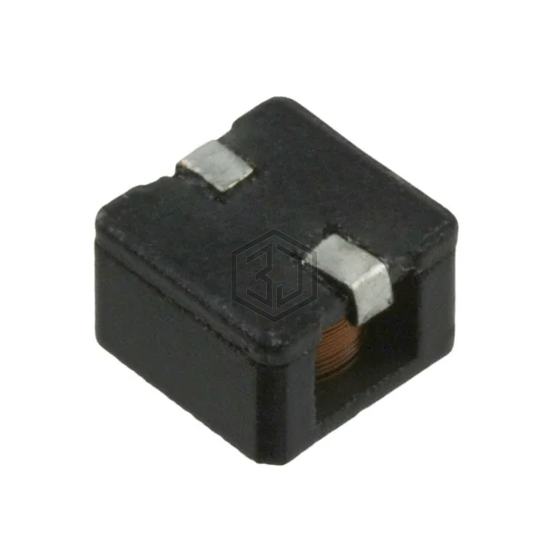

FIXED IND 10UH 3.5A 33 MOHM SMD
744314101 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 3.5A 33 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 13,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 33mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 7050 |
| Size / Dimension | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 744314101 and get a quote within 24 hours.
