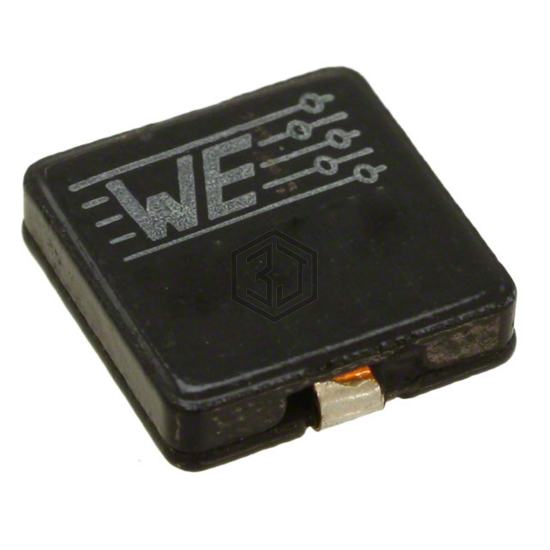

FIXED IND 250NH 24A 0.75MOHM SMD
744313025 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 250NH 24A 0.75MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 24 A.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 250 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 24 A |
| Current - Saturation (Isat) | 60A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.75mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 170MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1335 |
| Size / Dimension | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for 744313025 and get a quote within 24 hours.
