FIXED IND 400NH 19A 1.85MOHM SMD

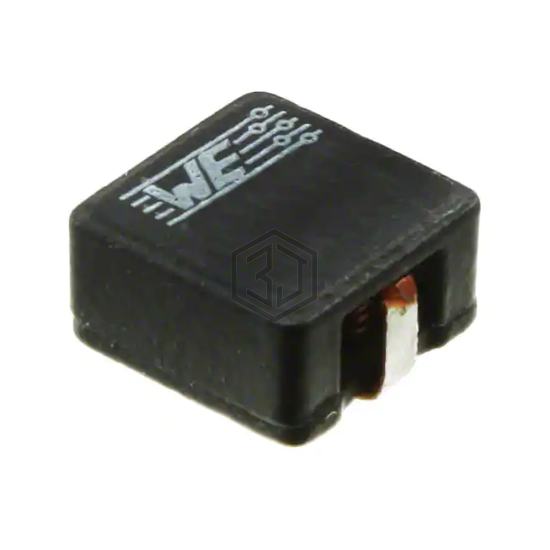

744311047 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 400NH 19A 1.85MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 19 A.
In Stock: 1,527
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 400 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.85mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 250MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 7040 |
| Size / Dimension | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for 744311047 and get a quote within 24 hours.
