FIXED IND 220NH 21A 1.1 MOHM SMD

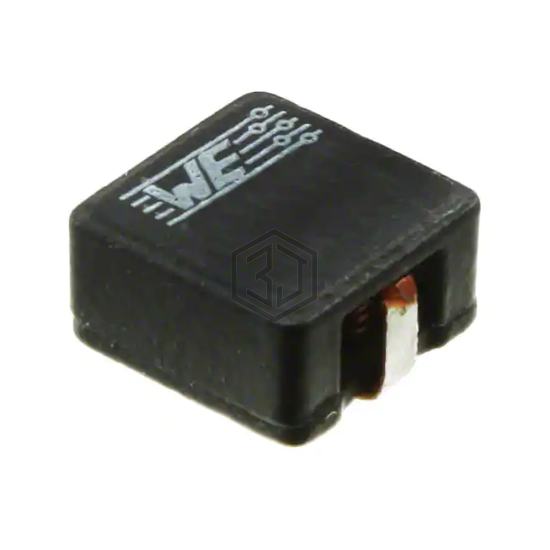

744311022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 21A 1.1 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 21 A.
In Stock: 1,798
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 21 A |
| Current - Saturation (Isat) | 32A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 290MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 7040 |
| Size / Dimension | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
