FIXED IND 130NH 22A 0.91MOHM SMD

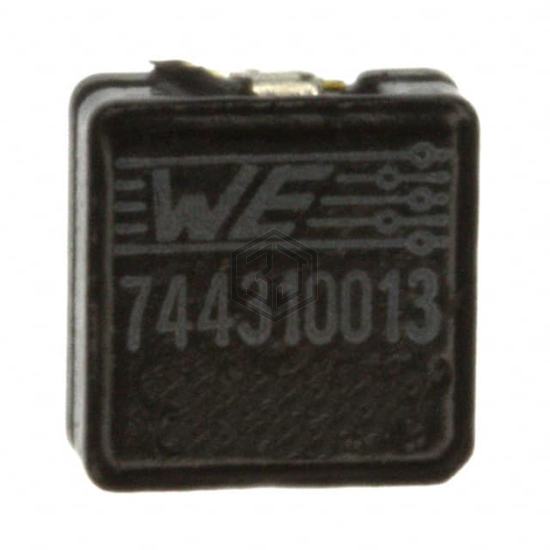

744310013 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 130NH 22A 0.91MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 22 A.
In Stock: 1,039
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 130 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 22 A |
| Current - Saturation (Isat) | 48A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.91mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 400MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 7030 |
| Size / Dimension | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for 744310013 and get a quote within 24 hours.
