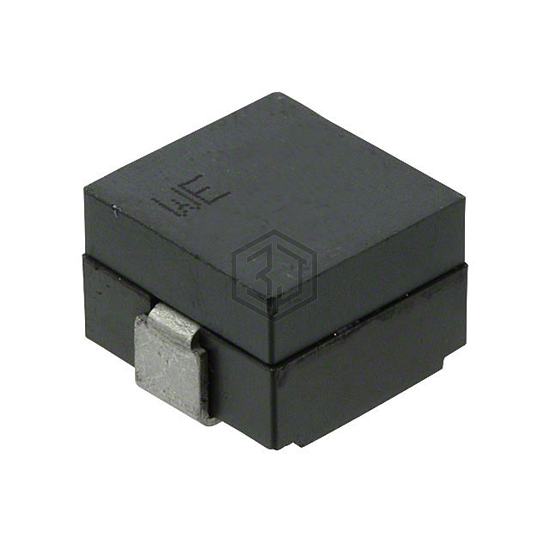

FIXED IND 330NH 47.5A 0.165 MOHM
744309033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 330NH 47.5A 0.165 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 47.5 A.
In Stock: 7,610
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 47.5 A |
| Current - Saturation (Isat) | 62.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.165mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 158MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.551" L x 0.512" W (14.00mm x 13.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for 744309033 and get a quote within 24 hours.
