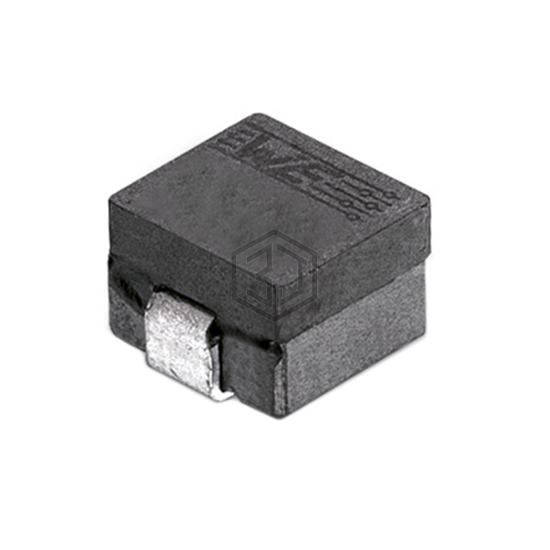

FIXED IND 150NH 60A 0.18MOHM SMD
7443082015 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 150NH 60A 0.18MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 60 A.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 60 A |
| Current - Saturation (Isat) | 79A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.18mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1088 |
| Size / Dimension | 0.402" L x 0.319" W (10.20mm x 8.10mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
